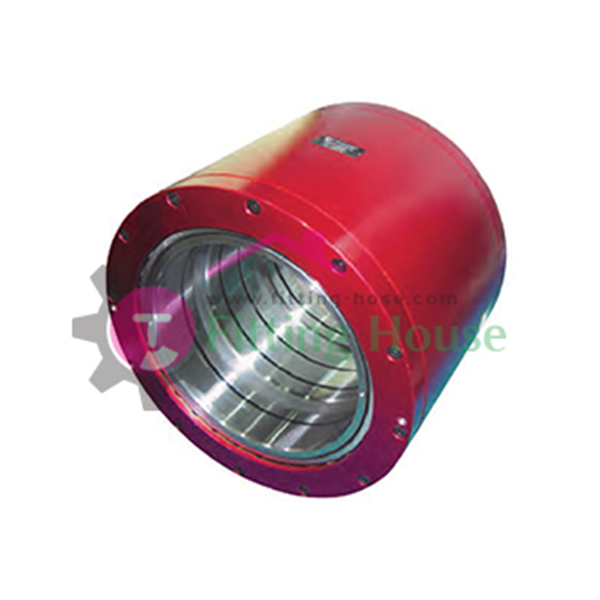

8000 Series Rotary Joints

Features

– Around-The-Shaft Rotary Joint for Air, Hydraulic oil

– Other special specification joints are available on order demand

Max. Shaft Size	200mm (8”)
Max. Air Pressure	10kg/cm²(150PSI)
Max. Hydraulic Pressure	140kg/cm²(2000PSI)
Max. Rotation Speed	180RPM
Max. Temperature	100°C (210°F)
Media	Air, Hydraulic Oil
*Avoid max. Pressure at max. rpm operation
